Siemens 3RF2320-1AA06 polovodičový stýkač spínanie pri nulovom napätí 1 spínací 20 A 1 ks
EAN:
Označenie výrobcu:
Objednávacie číslo:
Kategória výrobku
polovodičový stýkač
Počet pólov
1-pólový
Zaťažovací prúd
20 A
Pripojenie
skrutková svorka
Typ
3RF2320-1AA06
Datasheety: (PDF)
Počet
Celkom (79,67 € / kus)
79,67 €
bez DPH.
Technické parametre
- Kategória výrobku
polovodičový stýkač
- Typ
3RF2320-1AA06
- Počet pólov
1-pólový
- Typ spínanie
spínanie pri nulovom napätí
- Typ kontaktu
1 spínací
- Riadiace napätie (min.)
15 V/DC
- Riadiace napätie (max.)
24 V/DC
- Rozsah riadiaceho napätia
15 - 24 V/DC
- Spínacie napätie (min.)
48 V/AC
- Spínacie napätie (max.)
600 V/AC
- Zaťažovací prúd
20 A
- Druh montáže
montážna lišta
- Pripojenie
skrutková svorka
- Reakčná doba
1 ms
IP20
- Min. teplota
-25 °C
- Max. teplota
+60 °C

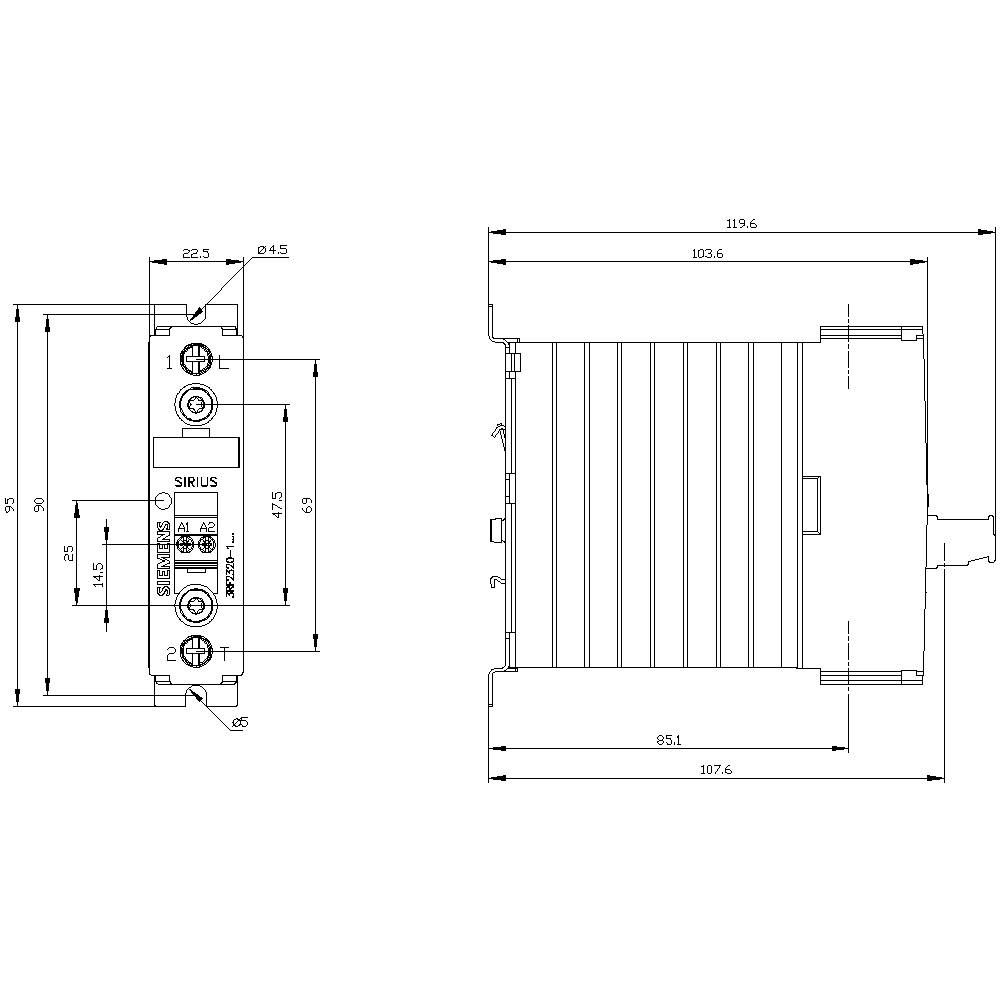

- Šírka
22.5 mm
- V
100 mm
- Hĺbka
123.5 mm
- Rozmer.
(š x v x h) 22.5 x 100 x 123.5 mm
- Obsah
1 ks
- Spĺňa RoHS
áno
- UKCA
Nie je relevantné
Na stiahnutie
Datasheet
Datasheet 1432287 Siemens 3RF2320-1AA06 polovodičový stýkač spínanie pri nulovom napätí 1 spínací 20 A 1 ks
Návod na obsluhu a bezpečnostné pokyny
Návod na obsluhu a bezpečnostné pokyny 1432287 Siemens 3RF2320-1AA06 polovodičový stýkač spínanie pri nulovom napätí 1 spínací 20 A 1 ks
Popis
Solid-state contactor 1-phase 3RF2 AC 51 / 20 A / 40 °C 48-600 V / 24 V DC screw terminal solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Rady
- Upozornenie
V prípade tohto zariadenia, ktoré nie je určené na pripojenie do slaboprúdovej siete, smie pripojenie a inštaláciu vykonať iba elektrikár.
