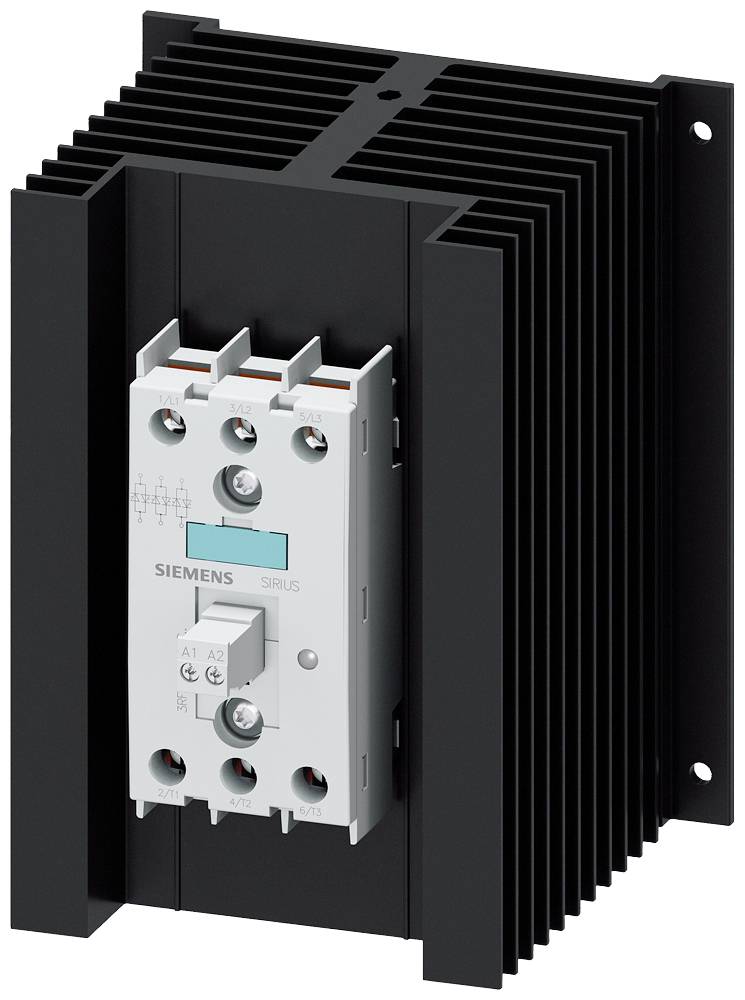

Siemens 3RF2450-1AC55 polovodičový stýkač spínanie pri nulovom napätí 3 spínacie 50 A 1 ks
EAN:
Označenie výrobcu:
Objednávacie číslo:
Kategória výrobku
polovodičový stýkač
Počet pólov
3-pólové
Zaťažovací prúd
50 A
Pripojenie
skrutková svorka
Typ
3RF2450-1AC55
Datasheety: (PDF)
Počet
Celkom (247,97 € / kus)
247,97 €
bez DPH.
Doprava zadarmo
Technické parametre
- Kategória výrobku
polovodičový stýkač
- Typ
3RF2450-1AC55
- Počet pólov
3-pólové
- Typ spínanie
spínanie pri nulovom napätí
- Typ kontaktu
3 spínacie
- Riadiace napätie (min.)
180 V/AC
- Riadiace napätie (max.)
230 V/AC
- Rozsah riadiaceho napätia
180 - 230 V/AC
- Spínacie napätie (min.)
48 V/AC
- Spínacie napätie (max.)
600 V/AC
- Zaťažovací prúd
50 A
- Druh montáže
upevnenie pomocou skrutiek
- Pripojenie
skrutková svorka
- Reakčná doba
40 ms
IP20
- Min. teplota
-25 °C
- Max. teplota
+60 °C

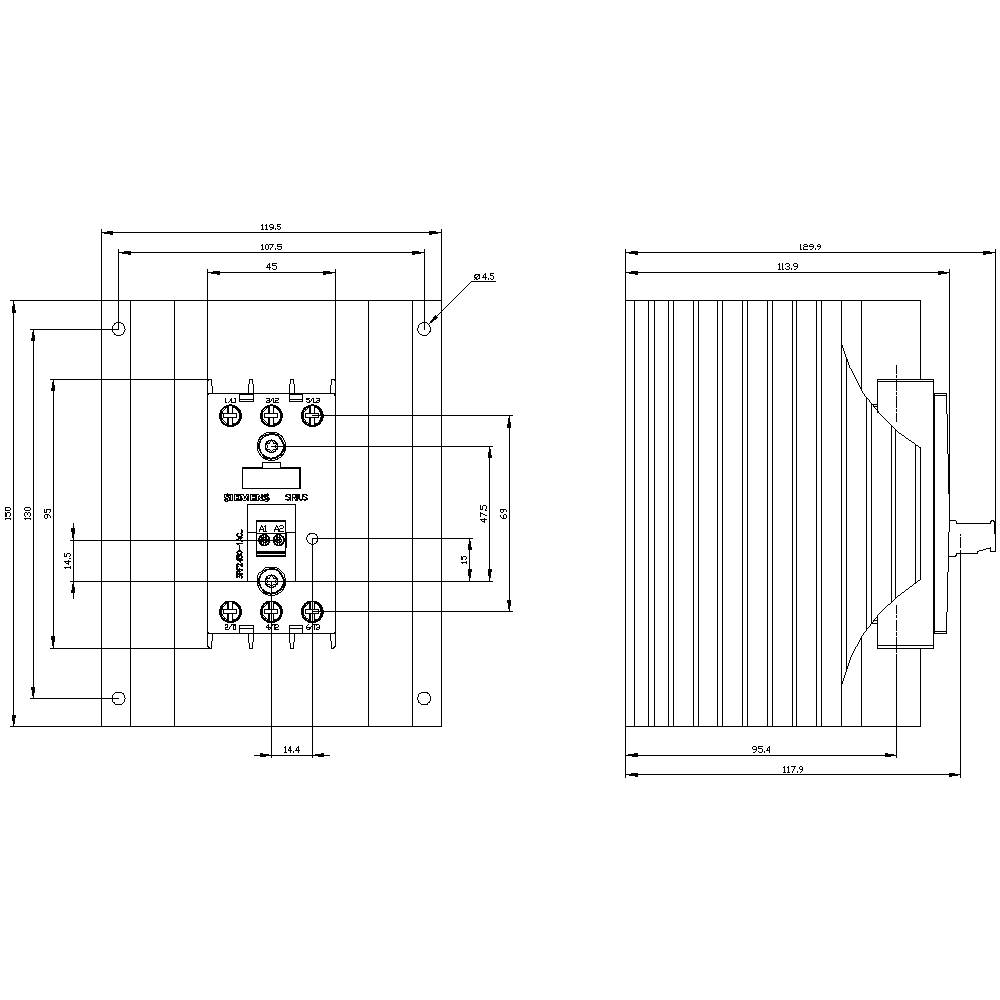

- Šírka
157.5 mm
- V
180 mm
- Hĺbka
121 mm
- Rozmer.
(š x v x h) 157.5 x 180 x 121 mm
- Obsah
1 ks
- Spĺňa RoHS
áno
3
ÁNO
180-230 V
180-230 V
50 A
AC
50 A
- UKCA
áno
Na stiahnutie
Datasheet
Datasheet 1430964 Siemens 3RF2450-1AC55 polovodičový stýkač spínanie pri nulovom napätí 3 spínacie 50 A 1 ks
Návod na obsluhu a bezpečnostné pokyny
Návod na obsluhu a bezpečnostné pokyny 1430964 Siemens 3RF2450-1AC55 polovodičový stýkač spínanie pri nulovom napätí 3 spínacie 50 A 1 ks
Popis
Solid-state contactor 3-phase 3RF2 AC 51 / 50 A / 40 °C 48-600 V / 230 V AC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state contactor SIRIUS 3RF24 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Rady
- Upozornenie
V prípade tohto zariadenia, ktoré nie je určené na pripojenie do slaboprúdovej siete, smie pripojenie a inštaláciu vykonať iba elektrikár.
