Siemens 3RW3013-1BB14 3RW30131BB14 soft startér Výkon motora pri 400 V 1.5 kW Výkon motora pri 230 V 0.75 kW 400 V/AC Me
EAN:
Označenie výrobcu:
Objednávacie číslo:
Datasheety: (PDF)
Počet
Celkom (178,85 € / kus)
178,85 €
bez DPH.
Doprava zadarmo
14-dňová lehota na vrátenie tovaru je zahrnutá v cene
Technické parametre
- Napätie motora
400 V/AC
- Kategória výrobku
soft startér
- Pripojovacie prúd
3.6 A
- Výkon motora pri 230 V
0.75 kW
- Výkon motora pri 400 V
1.5 kW
- Menovité napätie
400 V/AC
- Aktívna fáza
2
- Číslo výrobcu
3RW30131BB14
- Menovitý prúd
3.6 A
- Menovitý prúd - filter
3.6 A
- Typ
3RW3013-1BB14
- Výkon motora pri 230 V / 400 V
1.5 kW

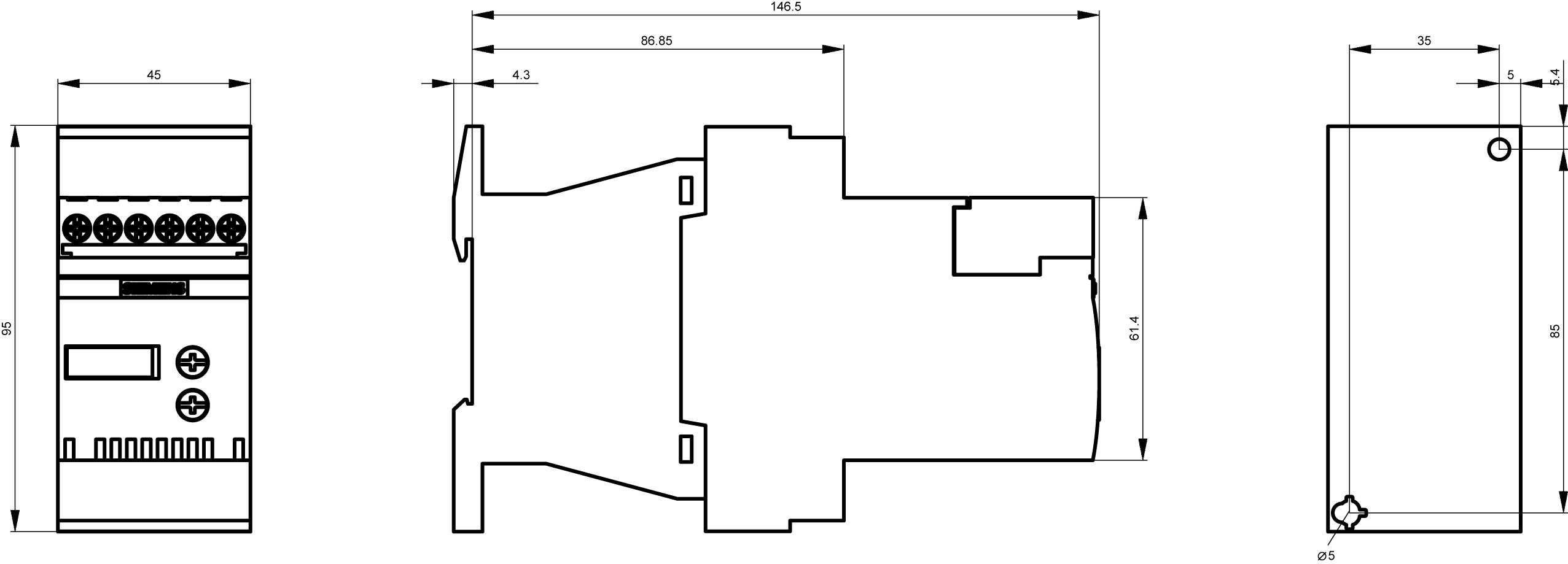

- Rozmer.
(d x š x v) 150 x 45 x 100 mm
- Pripojenie
skrutková svorka
- Šírka
45 mm
- V
100 mm
- Dĺžka
150 mm
- Hĺbka
150 mm
- Max. teplota
40 °C
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
3.6 A
0.75 kW
1.5 kW
40 °C
NIE
AC/DC
- UKCA
áno
Na stiahnutie
Datasheet
Datasheet 197535 Siemens 3RW3013-1BB14 3RW30131BB14 soft startér Výkon motora pri 400 V 1.5 kW Výkon motora pri 230 V 0.75 kW 400 V/AC Me
Návod na obsluhu a bezpečnostné pokyny
Návod na obsluhu a bezpečnostné pokyny 197535 Siemens 3RW3013-1BB14 3RW30131BB14 soft startér Výkon motora pri 400 V 1.5 kW Výkon motora pri 230 V 0.75 kW 400 V/AC Me
Popis
SIRIUS soft starter S00 3.6 A, 1.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.

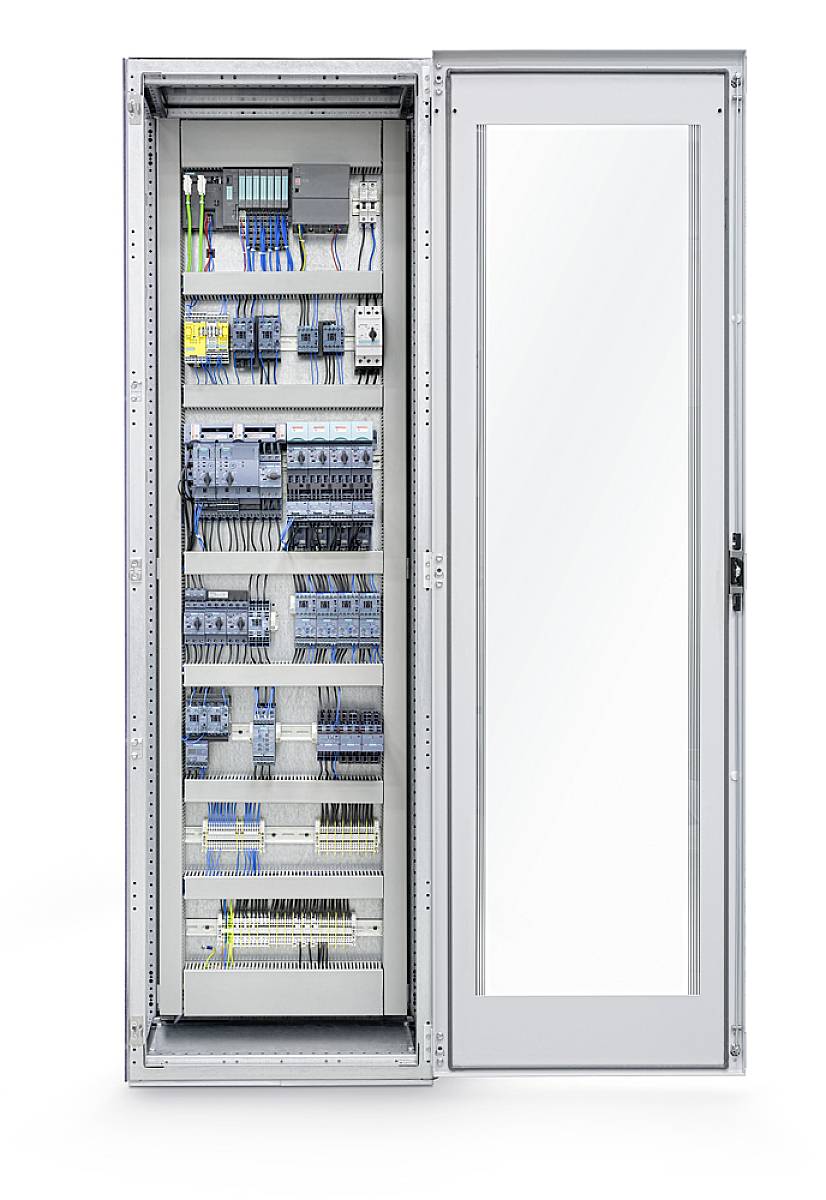

Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

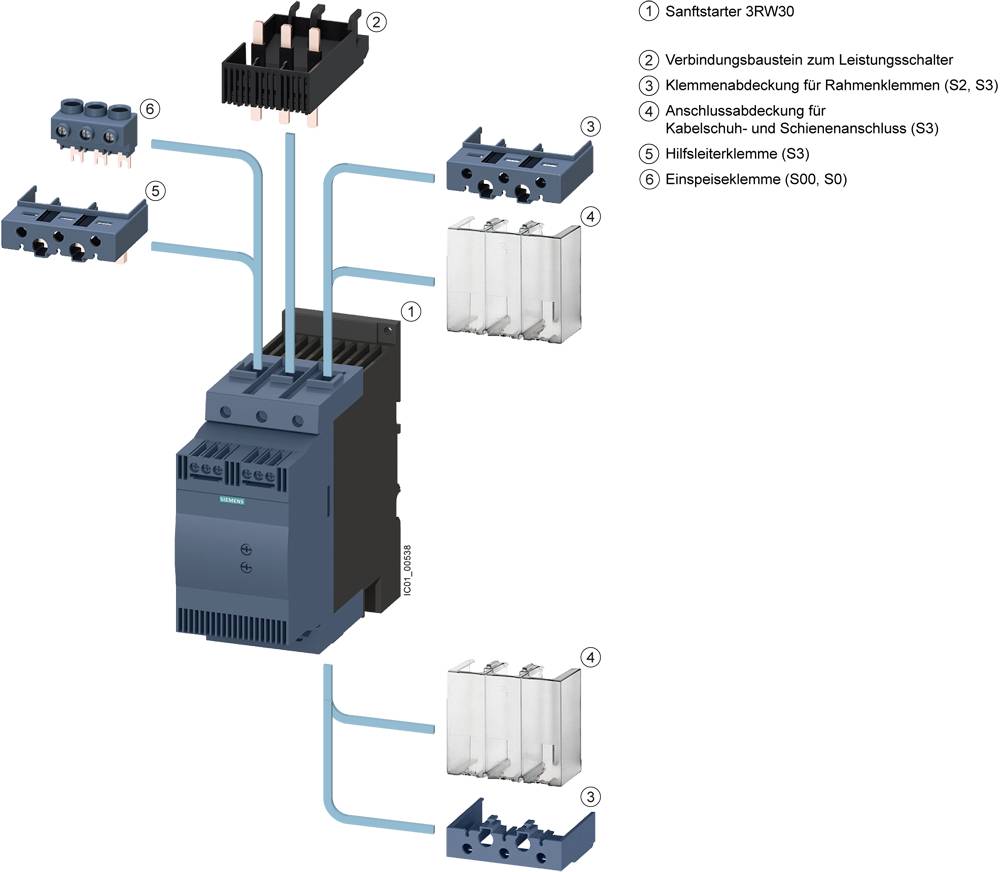

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
