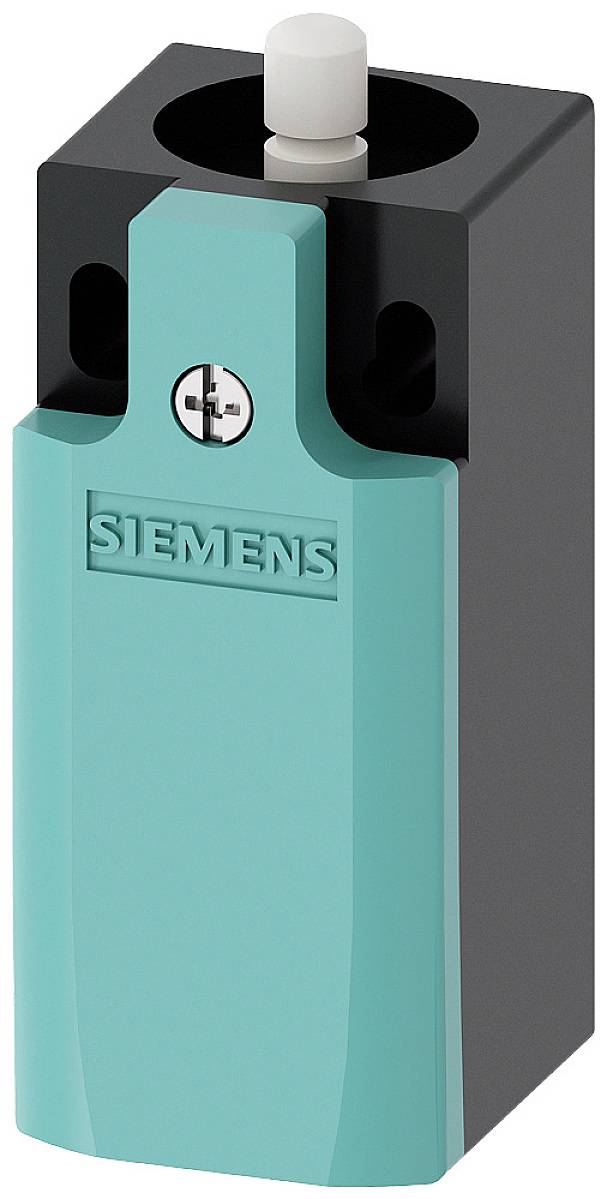

Siemens 3SE52320LC05 3SE5232-0LC05 koncový spínač 240 V/AC 1.5 A tŕň bez aretácie IP67 1 ks
EAN:
Označenie výrobcu:
Objednávacie číslo:
Datasheety: (PDF)
Množstevná cena (Ks)
Zľava
Cena balenia (bez DPH.)
1
-
26,01 €
3
4% = 1,13 €
24,88 €
Množstevné zľavy sa líšia podľa predajcu
Ušetríte 0,00 €
Počet
Celkom (26,01 € / kus)
26,01 €
bez DPH.
14-dňová lehota na vrátenie tovaru je zahrnutá v cene
Technické parametre
- Druh obalu
Piece
- Kategória výrobku
koncový spínač
- Pripojenie
skrutkovací
- Typ zopnutie
tŕň
- Spínacie napätie
240 V/AC
- Spínací prúd (max.)
1.5 A
- Typ kontaktu
1 spínací
2 rozpínacie
- Vzdialenosť kontaktov
Skokový kontakt
- Funkcia
bez aretácie
IP67
- Rozmery závitu
M20
- Materiál
plast
- Šírka
31 mm
- Typ
3SE5232-0LC05
- Obsah
1 ks

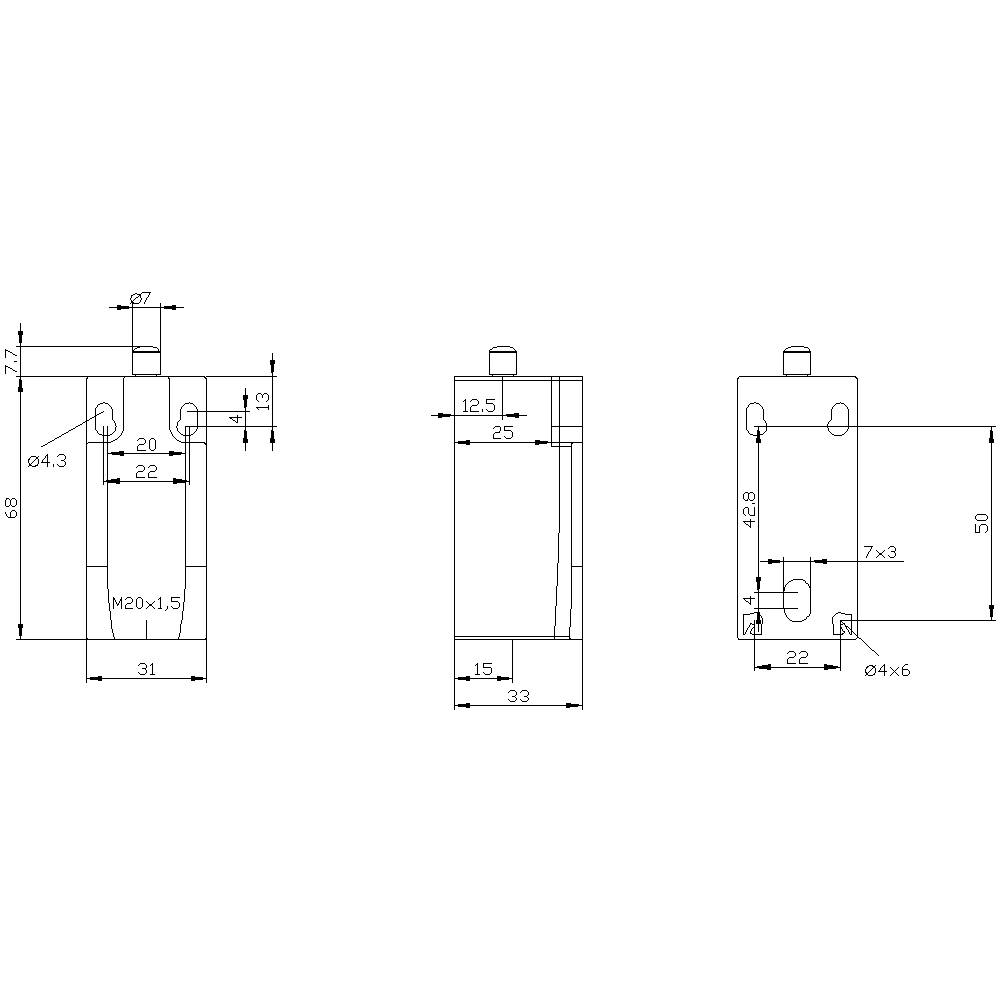

- Rozmer.
(d x š x v) 31 x 31 x 68 mm
- Spĺňa RoHS
áno
- V
68 mm
- Dĺžka
31 mm
- Hĺbka
33 mm
Quick-break switch
Plastic
ÁNO
Other
NIE
None
None
None
Cuboid
IP65
ÁNO
2
Plunger
None
NIE
6 A
0.55 A
3 A
31 mm
33 mm
75.7 mm
NIE
-25-85 °C
2
1
0
Roller cam straight
12
- UKCA
áno
Na stiahnutie
Datasheet
Datasheet 703033 Siemens 3SE52320LC05 3SE5232-0LC05 koncový spínač 240 V/AC 1.5 A tŕň bez aretácie IP67 1 ks
Návod na obsluhu a bezpečnostné pokyny
Návod na obsluhu a bezpečnostné pokyny 703033 Siemens 3SE52320LC05 3SE5232-0LC05 koncový spínač 240 V/AC 1.5 A tŕň bez aretácie IP67 1 ks
Popis
position switch plastic enclosure according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts rounded plunger, form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.

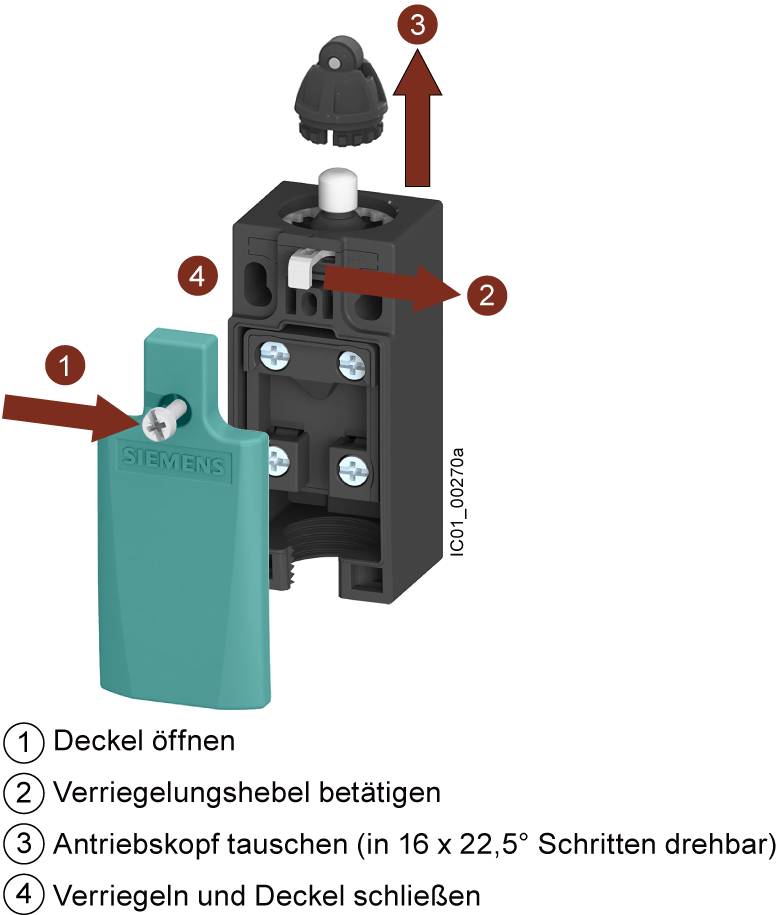

The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
