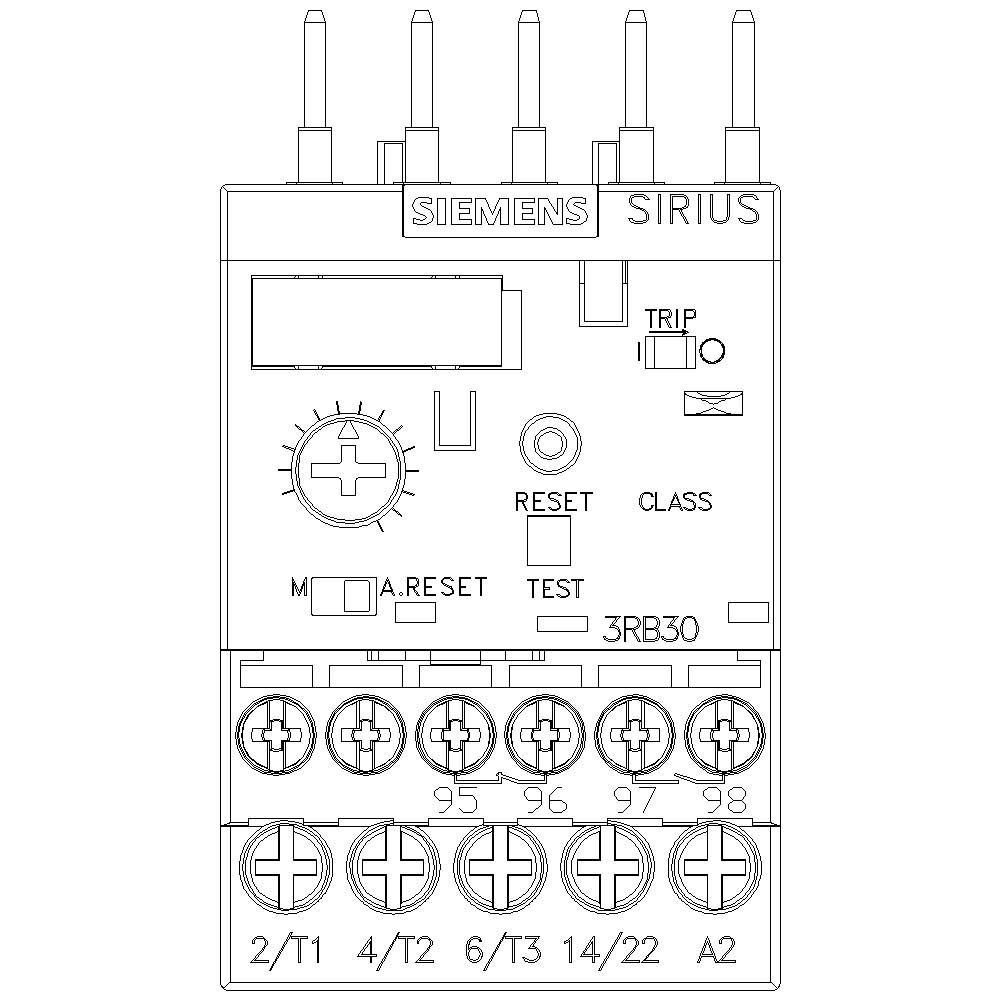

Ilustračný obrázok
prepäťové relé Siemens 3RB3016-1SB0 3RB30161SB0, 1 ks
Kategória výrobku
prepäťové relé
Funkcia
preťaženie
Typ kontaktu
1 spínací
1 rozpínací
Typ
3RB3016-1SB0
Konštrukčná veľkosť
S00
Datasheety: (PDF)
EAN:
Označenie výrobcu:
Objednávacie číslo:
2 Ks
Počet
Celkom (109,99 € / kus)
109,99 €
s DPH
Doprava zadarmo
Už len 2 Ks skladom!
Technické parametre
- Kategória výrobku
prepäťové relé
- Typ
3RB3016-1SB0
- Konštrukčná veľkosť
S00
- Funkcia
preťaženie
- Vlastnosti
Prepínač auto / manuálne
- Prevádzkové napätie
690 V/AC
- Rozsah nastavenia prúdu (min.)
3 A
- Rozsah nastavenia prúdu (max.)
12 A
- Rozsah nastavenia (prúd)
3 - 12 A

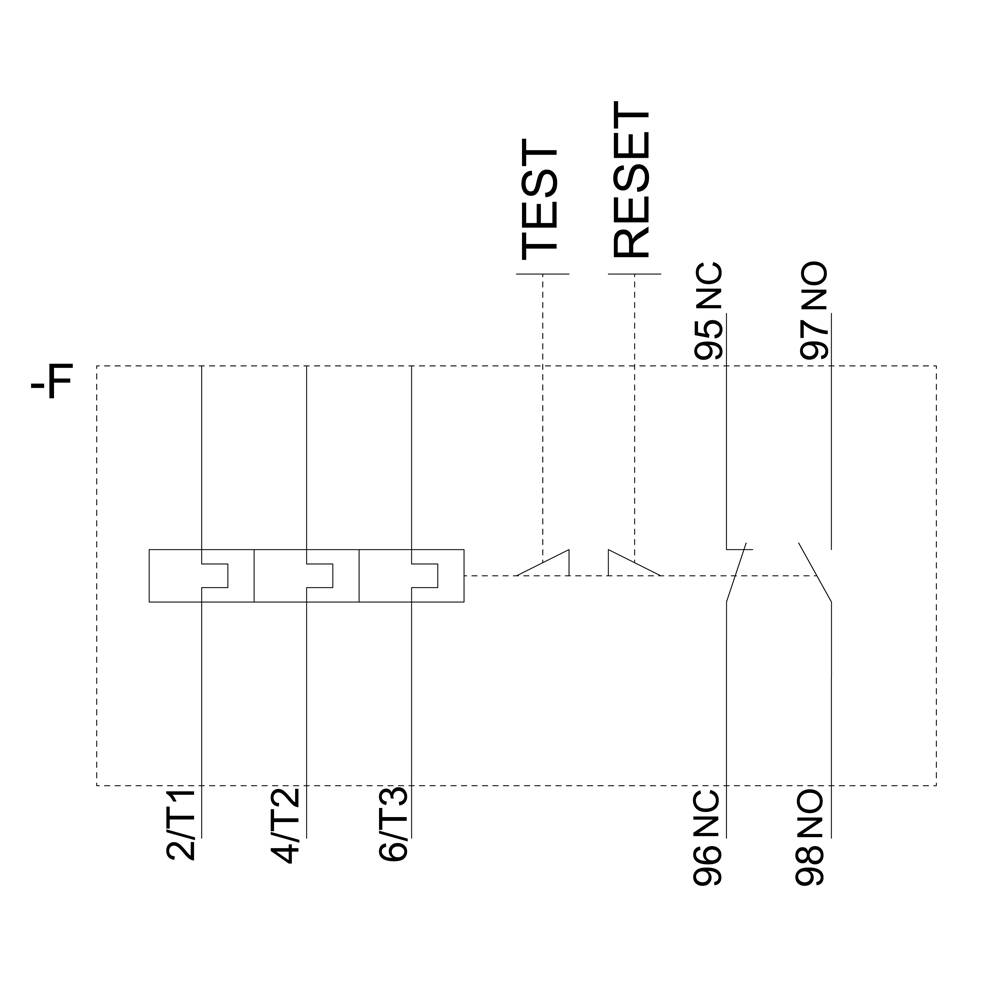

- Typ kontaktu
1 spínací
1 rozpínací
- Pripojenie
skrutkovací
IP20
- Min. teplota
-25 °C
- Max. teplota
+60 °C

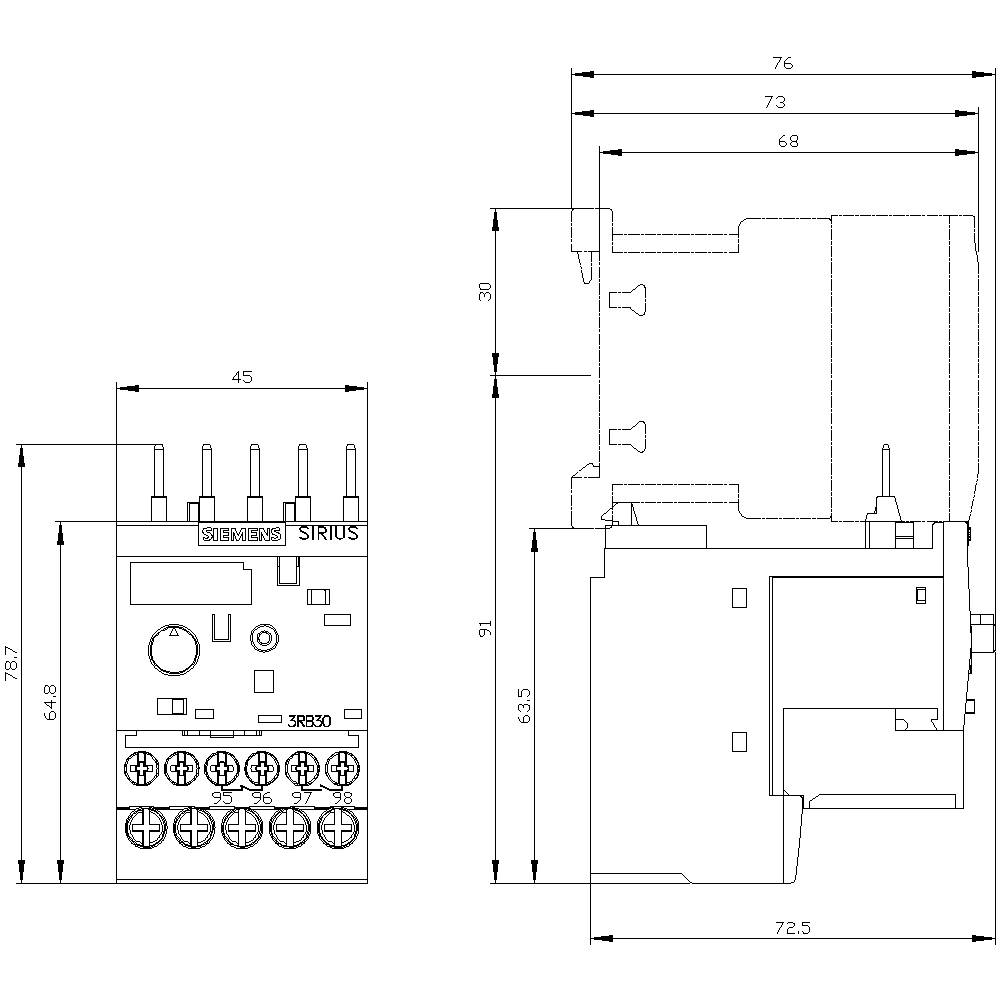

- Šírka
45 mm
- V
79 mm
- Rozmer.
(d x š x v) 73 x 45 x 79 mm
- Obsah
1 ks
- AWG max.
12
- AWG min.
20
- Menovitý prúd
12 A
- Dĺžka
73 mm
- Prierez flexibilné (min.)
0.5 mm²
- Prierez pevný (min.)
0.5 mm²
Separate positioning
1
1
0
CLASS 10
Screw connection
- UKCA
áno
Na stiahnutie
Datasheet
Datasheet 1430765 prepäťové relé Siemens 3RB3016-1SB0 3RB30161SB0, 1 ks
Datasheet 1430765 prepäťové relé Siemens 3RB3016-1SB0 3RB30161SB0, 1 ks
Návod na obsluhu a bezpečnostné pokyny
Návod na obsluhu a bezpečnostné pokyny 1430765 prepäťové relé Siemens 3RB3016-1SB0 3RB30161SB0, 1 ks
Popis
Overload relay 3...12 A Electronic For motor protection Size S00, Class 10E Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. With their low heat loss, they are particularly energy-efficient and help to reduce the temperature rise in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX) are a matter of course.
Can be supplied with different setting ranges of the overload release and with different trip classes. They are available with screw or spring-loaded terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation.
The accessories consistently fit all sizes from S00 to S3.
Simple, efficient and always up to date - SIRIUS modular system.
Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. With their low heat loss, they are particularly energy-efficient and help to reduce the temperature rise in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX) are a matter of course.
Can be supplied with different setting ranges of the overload release and with different trip classes. They are available with screw or spring-loaded terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation.
The accessories consistently fit all sizes from S00 to S3.
Simple, efficient and always up to date - SIRIUS modular system.
