Siemens polovodičové relé 3RF22553AB45 55 A Spínacie napätie (max.): 600 V/AC spínanie pri nulovom napätí 1 ks
EAN:
Označenie výrobcu:
Objednávacie číslo:
Kategória výrobku
polovodičové relé
Riadiace napätie (min.)
4 V/DC
Riadiace napätie (max.)
30 V/DC
Spínacie napätie (max.)
600 V/AC
Zaťažovací prúd
55 A
Datasheety: (PDF)
Počet
Celkom (146,33 € / kus)
146,33 €
bez DPH.
Doprava zadarmo
Technické parametre
- Kategória výrobku
polovodičové relé
- Typ
3RF2255-3AB45
- Typ spínanie
spínanie pri nulovom napätí
- Pripojenie
prstencové očko 4 mm
- Riadiace napätie (min.)
4 V/DC
- Riadiace napätie (max.)
30 V/DC
- Rozsah riadiaceho napätia
4 - 30 V/DC
- Riadiace prúd (max.)
15 mA
- Rázový prúd (max.)
600 A
- Spínacie napätie (min.)
48 V/AC
- Spínacie napätie (max.)
600 V/AC
- Zaťažovací prúd
55 A
- Typ kontaktu
2 spínacie
- Min. teplota
-25 °C
- Max. teplota
+60 °C
IP00

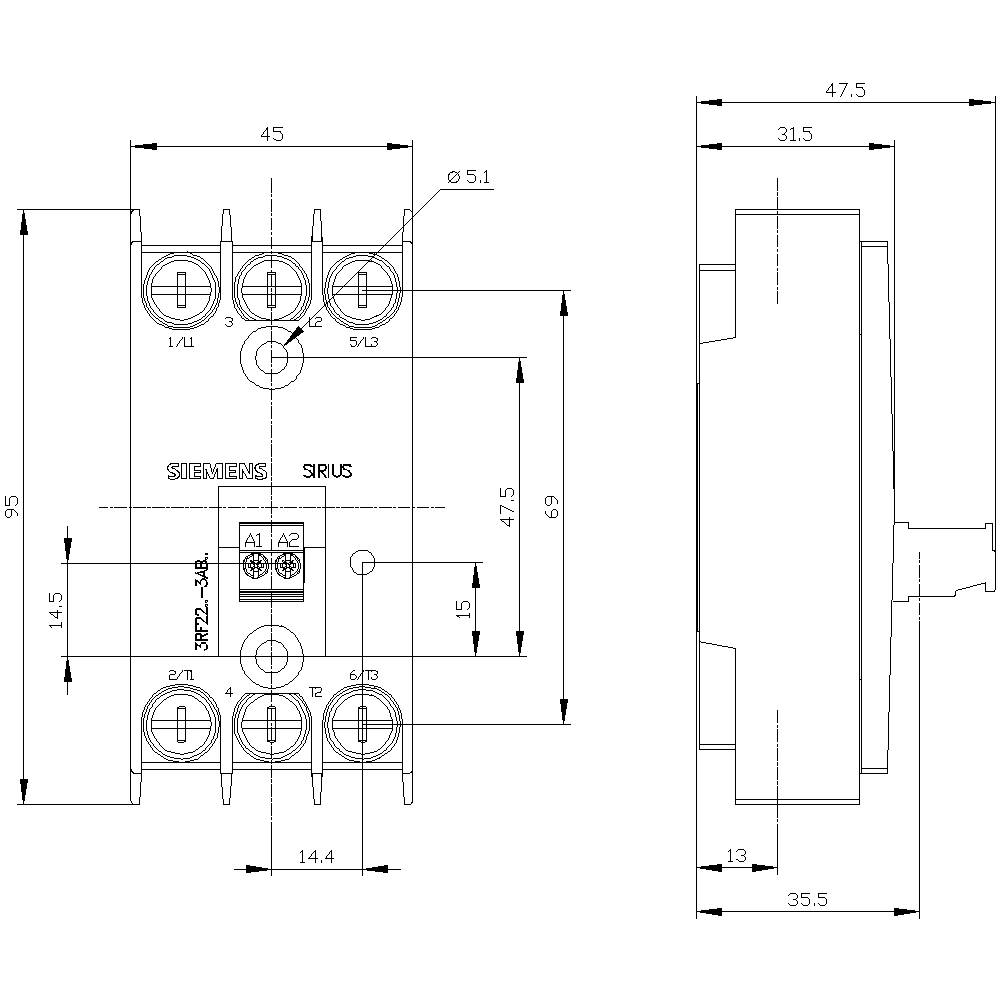

- Šírka
45 mm
- V
95 mm
- Hĺbka
47 mm
- Hmotnosť
151 g
- Spĺňa RoHS
áno
- Obsah
1 ks
- Prevádzková teplota
-40 až +100 °C
3
ÁNO
55 A
DC
50 A
- UKCA
Nie je relevantné
Na stiahnutie
Datasheet
Datasheet 1430868 Siemens polovodičové relé 3RF22553AB45 55 A Spínacie napätie (max.): 600 V/AC spínanie pri nulovom napätí 1 ks
Datasheet 1430868 Siemens polovodičové relé 3RF22553AB45 55 A Spínacie napätie (max.): 600 V/AC spínanie pri nulovom napätí 1 ks
Návod na obsluhu a bezpečnostné pokyny
Návod na obsluhu a bezpečnostné pokyny 1430868 Siemens polovodičové relé 3RF22553AB45 55 A Spínacie napätie (max.): 600 V/AC spínanie pri nulovom napätí 1 ks
Popis

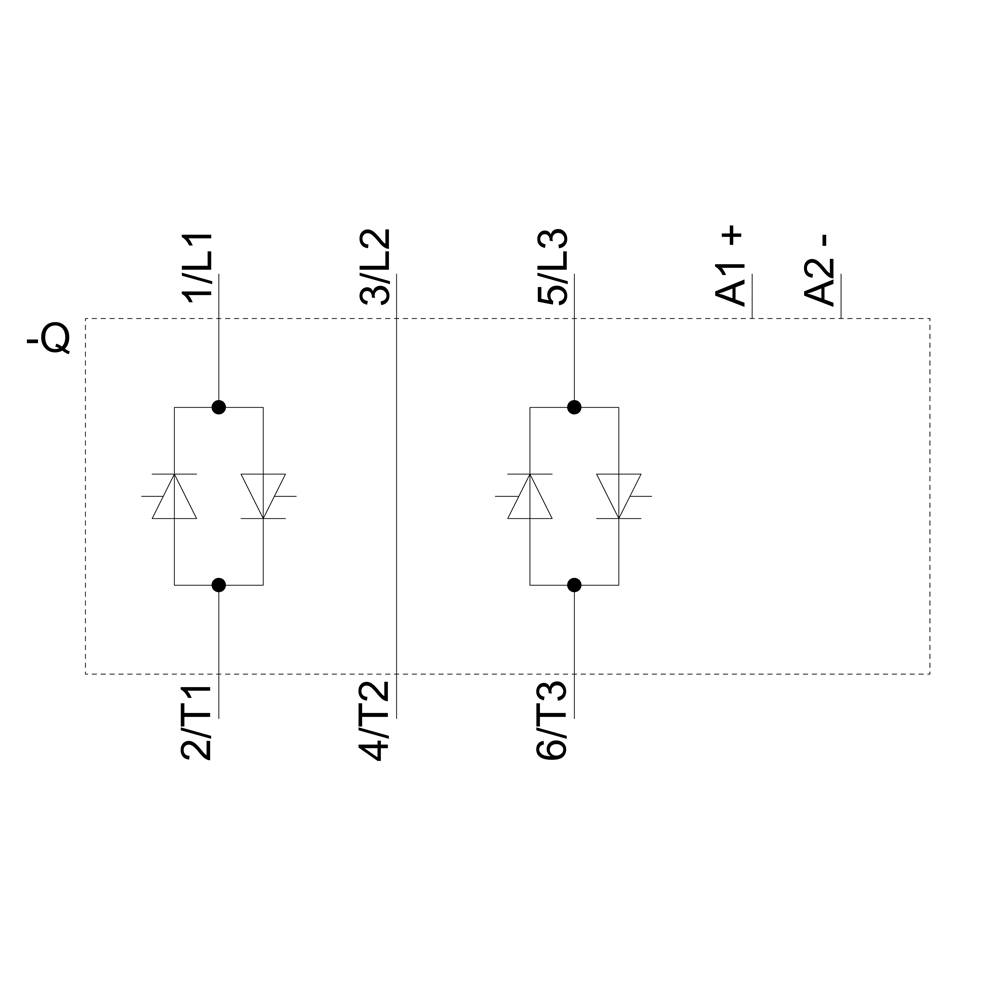

Semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 2-phase controlled Ring cable connection Blocking voltage 1200 V solid-state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
